UNICO
Bituminous flexible support for PIR/PUR rigid panels
BITUMEN FINISHING
LIGHTNESS
HEAT RESISTANCE
PROTECTIVE SUPPORT

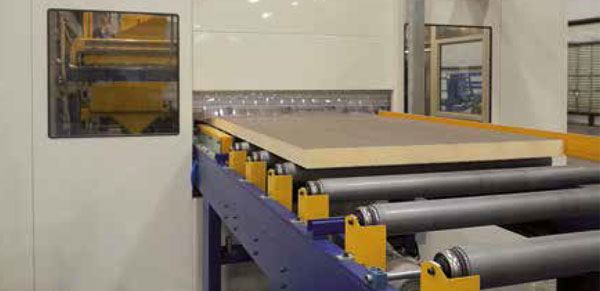

This product is the cheapest and lightest facing, exclusively proposed for low thickness insulation polyurethane boards. It is basically closed, therefore, in order to limit the creation of blisters and to allow the discharge of blowing gas in excess, punching the facing itself, with a spiked calander, is recommended once the panel has reached the exit of the double belt conveyor.

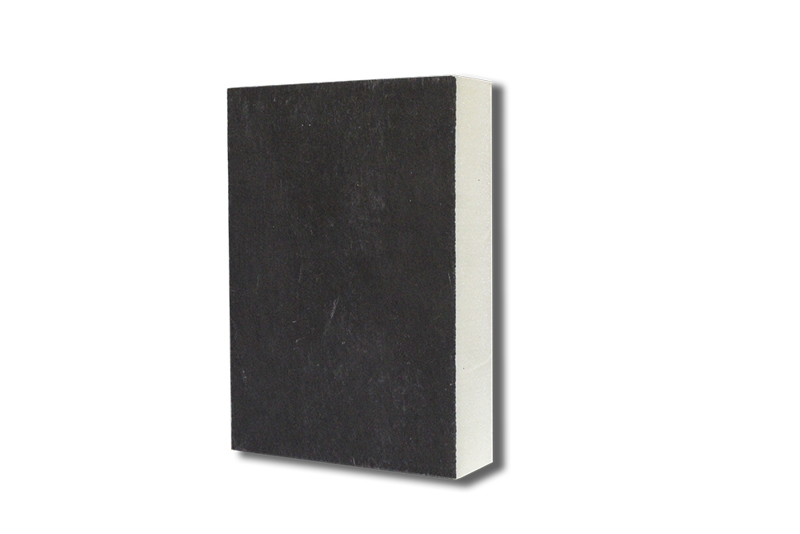

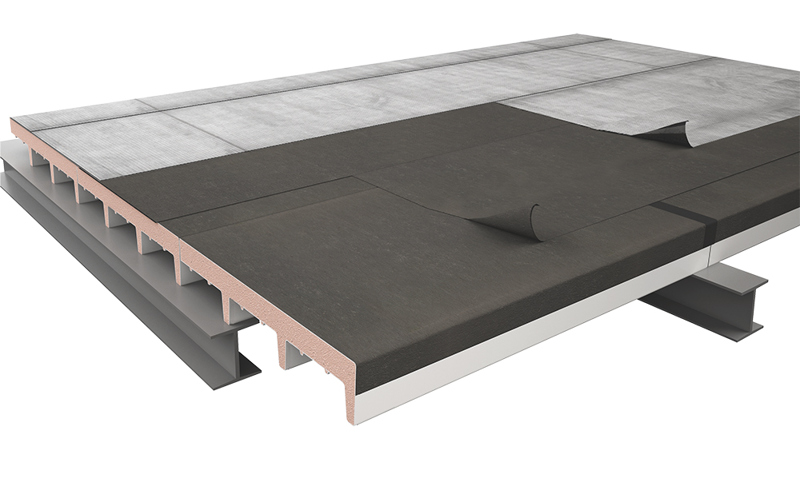

PACO, available in 400 g/m2 or 500 g/m2 versions, it is the ideal facing for panels meant for roof insulation and for the insulation of attic floors with insulation material between concrete slab and bearing structure. The so-made panel is also used in the separation of cold basements and heated residential rooms.
| CHECKED CHARACTERISTICS* | NORM | UNIT OF MEASURE | VALUE |
|---|---|---|---|
| Mass per unit area | EN 13859-1 | g/m2 | 330±7% |
| Thickness | EN 1849-1 | mm | 0,35±15% |
| Tensile Strength | EN 13859-1 | N/5cm | MD: 380±15% CD: 210±15% |
| Elongation | EN 13859-1 | % | MD: 1-2% CD: 2-3% |
| Nail Tearing | EN 13859-1 | N | MD: 22±15% CD: 22±15% |
| Resistance to water penetration | EN 13859-1 | Class W2 | |
| Artificial Ageing Tensile Strenght after ageing Resistance to water penetration after ageing |
EN 13859-1 | N/5cm | MD: 380±15% CD: 210±15% Class W2 |
| Water Vapour transmission property | EN 13859-1 | g/m² x 24h m |
WDD: 33±15% Sd=1,3 abt 23°C 0/75% RH |
| Dimensional stability | EN 13859-1 (80°C) | % | -0,5<ΔL<0,5 |
| Flexibility at low temperature | EN 13859-1 | °C | 0 |
Product subject to CE mark according to EN 13859-1/ EN 13859-2
* data from one production, they could be updated
